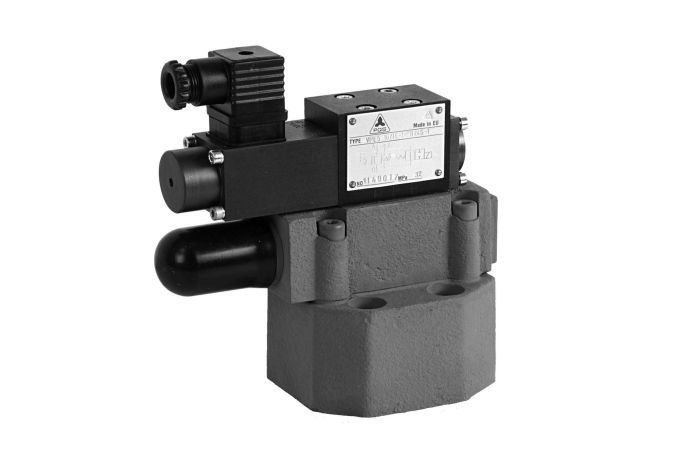

Pilot operated pressure relief valves with unloading valve, Dn10

Category: Pressure Relief Valves - Dn 10

Pressure relief valves VP(E)5-10 are used to keep adjusted pressure in certain range.

  • Installation dimensions according to DIN 24 340 / ISO 4401

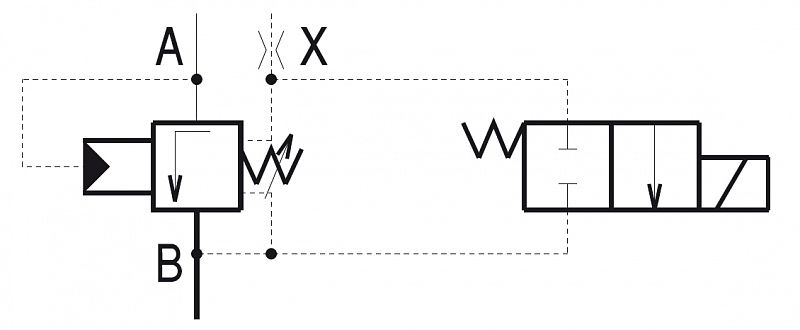

  • VPE includes unloading directional valve
  • 3 pressure ranges
  • 2 options of pressure adjustment
  • Valve construction provides fine adjustment

Dn 10 | pmax = 32Mpa | Qmax = 200 dm3/min

Technical dataTechnical data
