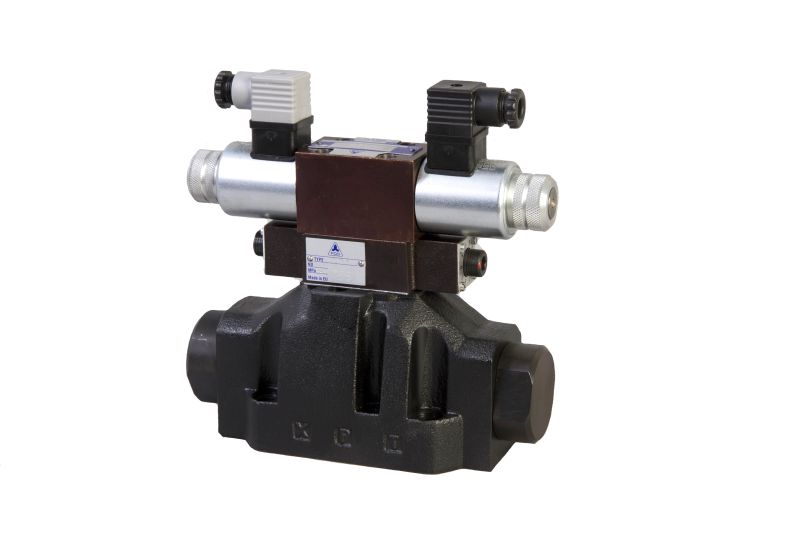

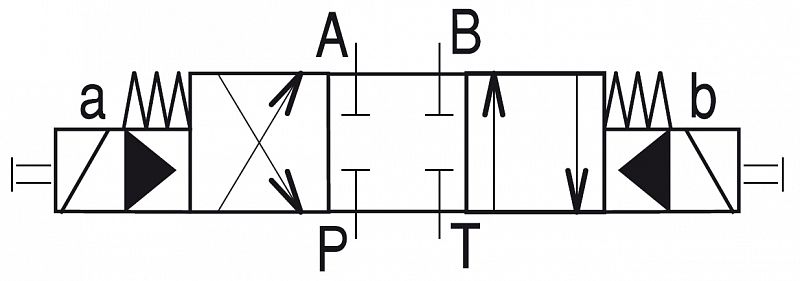

Directional control valves RSEH5-16 consist of two stages. The first (control) stage is formed by solenoid operated directional control valve RSE4-06 which can be either 2- or 3-position. The second (controlled) stage is formed by hydraulic operated directional control valve.

Directional control valves RSH5-16 do not contain the solenoid operated directional control valve and are designed for direct hydraulic control.

• Installation dimensions according to DIN 24 340 / ISO 4401-07 / CETOP RP121H-R07
• Valve housing Surface treatment: Phosphate coated
• Selenoids treatment: Zinc coated (RSEH only)
• Arbitrary working position
• High durability and reliability.

Dn16 | pmax = 32MPa | Qmax = 300 dm3/min | CETOP 7
