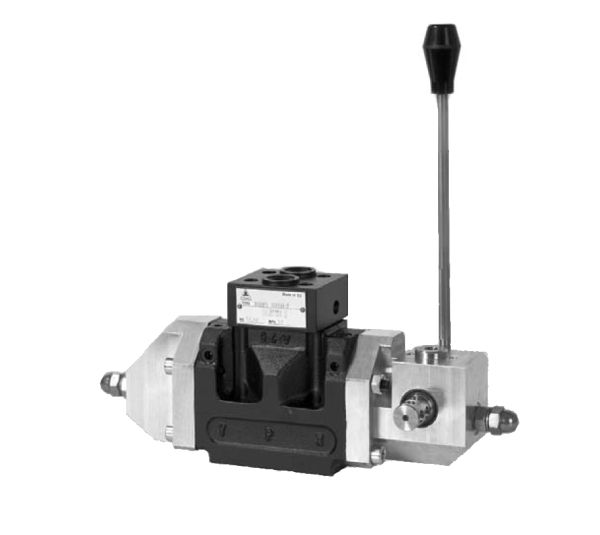

Manually or Hydraulic Operated Directional Control Valves Dn10


Directional control valves of type RSHP5-10 operated either hydraulically or by hand lever (in case of emergency) are used to control start, stop and direction of fluid in hydraulic systems.

  • Installation dimensions according to DIN 24 340 / ISO 4401-05 / CETOP RP121H-R05
  • Arbitrary working position
  • High durability and reliability.

Dn10 | pmax = 32MPa | Qmax = 160dm3/min | CETOP 5


Technical dataTechnical data
